SmartWave

Connect and test every device instantly

​SmartWave enables you to instantly communicate with multitude of devices like ADC, DAC, Sensors and many more via industry standard interfaces such as SPI or I2C and flexible GPIOs. The adaptable and powerful configuration possibilities and the robust design makes SmartWave to an indispensable companion to your oscilloscope. Its role as an SPI/I2C Host Adapter not only simplifies connectivity but also elevates the precision and efficiency of device interactions.



Standard interfaces

Out of the box support of widely used, industry-standard interfaces like  SPI and I2C.

GPIO

Flexible GPIOs provide dynamic interfacing capabilities across a wide range of devices

Everything in view

Display showing pin assignments and status information for improved usability and user experience.

Configurable IO Voltage

Selectable IO voltage for the Pmod™ connector between 1.8 or 5.0 Volts.

Pmod™ compatible

Directly connect DIGILENT Pmod™ based extension boards.

Trigger button

User configurable trigger button for better usability at the place where it is needed.

Features

Micro USB

  • USB Interface

  • Display

  • Trigger Button

2

16

  • Digital IO channels - GPIOs

Two for each interface

40MHz

  • Max Interface speed

1.8 - 5.0V

  • Output Voltage

1 MSamples

  • Waveform samples

86x67x32mm

  • Dimensions (WxHxD)

Unlock Endless Possibilities with SmartWave’s Advanced FPGA Platform and Customizable Capabilities

SmartWave is a cutting-edge tool based on an advanced FPGA platform, ensuring unparalleled performance and adaptability. Powered by flexible software, it's designed to meet diverse testing needs with ease. At semify GmbH, we understand the unique requirements of every project, which is why we proudly offer a customization service tailored to your specific needs. If you're interested in adapting SmartWave to your requirements or have any queries, don't hesitate to reach out and discuss the details with us. Together, we can explore the endless possibilities.

​

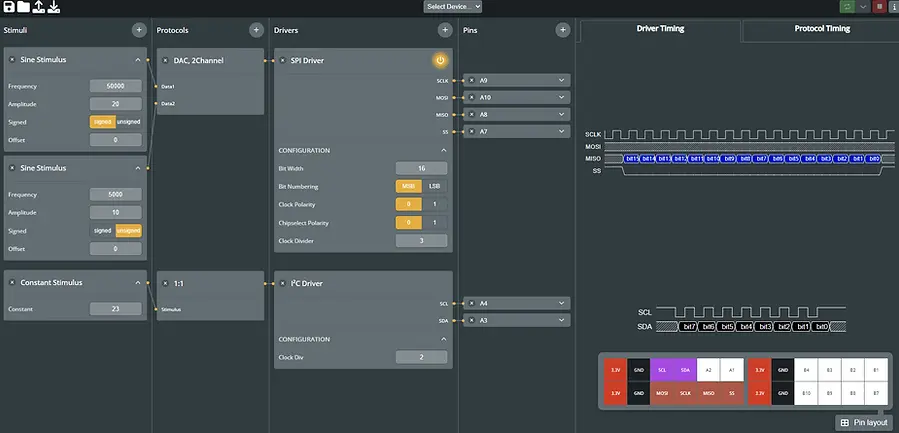

WebGUI

Click to start the WebGUI...

advanced FPGA platform/ WebGUI tool png

Experience Enhanced Flexibility with SmartWave’s Versatile WebGUI Deployment Options

The WebGUI software isn't just limited to online access; it offers versatility in its deployment. You have the option to install the WebGUI software on a local server, ensuring faster access and enhanced security. Additionally, the software can be executed directly on local machines, such as PCs, providing convenience and flexibility. For more information or to discuss specific requirements, please get in touch with semify. We're here to assist and guide you through every step.

​

SmartWaveAPI - Python API

Say goodbye to the monotony of repetitive tasks. SmartWaveAPI empowers you to automate these tasks with ease, allowing you to focus on innovation and creativity. By writing your own Python scripts, you unlock a level of efficiency and precision that manual processes simply cannot match.

​

The SmartWaveAPI is hosted on PyPi.org.



Simple installation using pip install SmartWaveAPI.
